Android Request Focus



Android Request Focus


  • Static Request Focus Creation in Android.

  • Dynamic Request Focus Creation in Android.



Static Request Focus Creation in Android.

Step 1 : Select File -> New -> Project -> Android Application Project (or) Android Project. Fill the forms and click "Finish" button. If you have any doubt regarding create a new project Click Here.

 Step 2 : Open res -> layout -> activity_main.xml (or) main.xml and add following code :

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent" >

    <EditText
        android:id="@+id/editText1"
        android:hint="EditText 1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="60dp"
        android:ems="10"
        android:inputType="textPersonName" >

        <requestFocus />
    </EditText>

    <EditText
        android:id="@+id/editText2"
        android:hint="EditText 2"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@+id/editText1"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="48dp"
        android:ems="10"
        android:inputType="textPersonName" />

</RelativeLayout>

 Step 3 : Open src -> package -> MainActivity.java and add following code :

package com.gudivada.hemanthsomaraju;

import android.os.Bundle;
import android.app.Activity;
import android.view.Menu;

public class MainActivity extends Activity {

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.main, menu);
        return true;
    }
}

Step 4 : Open AndroidManifest.xml and add following code :

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.gudivada.hemanthsomaraju"
    android:versionCode="1"
    android:versionName="1.0" >

    <uses-sdk
        android:minSdkVersion="8"
        android:targetSdkVersion="19" />

    <application
        android:allowBackup="true"
        android:icon="@drawable/ic_launcher"
        android:label="@string/app_name"
        android:theme="@style/AppTheme" >
        <activity
            android:name="com.gudivada.hemanthsomaraju.MainActivity"
            android:label="@string/app_name" >
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>

</manifest>

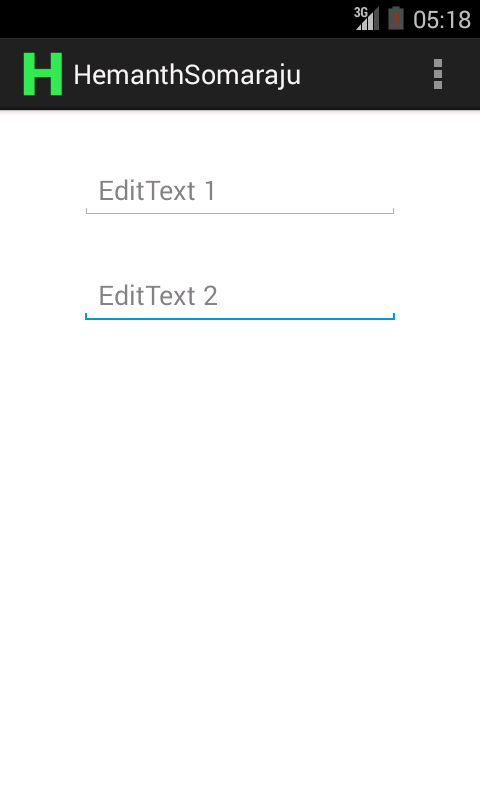

Step 5 : Our output will be like this :







Dynamic Request Focus Creation in Android.

Step 1 : Select File -> New -> Project -> Android Application Project (or) Android Project. Fill the forms and click "Finish" button. If you have any doubt regarding create a new project Click Here.

Step 2 : Open res -> layout -> activity_main.xml (or) main.xml and add following code :
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent" >

    <EditText
        android:id="@+id/editText1"
        android:hint="EditText 1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentTop="true"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="34dp"
        android:ems="10" >

    </EditText>

    <EditText
        android:id="@+id/editText2"
        android:hint="EditText 2"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignTop="@+id/editText1"
        android:layout_centerHorizontal="true"
        android:layout_marginTop="70dp"
        android:ems="10" />

</RelativeLayout>

  Step 3 : Open src -> package -> MainActivity.java and add following code :

 package com.gudivada.hemanthsomaraju;

import android.os.Bundle;
import android.app.Activity;
import android.view.Menu;
import android.widget.EditText;

public class MainActivity extends Activity {

    EditText et1, et2;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        et1 = (EditText) findViewById(R.id.editText1);
        et2 = (EditText) findViewById(R.id.editText2);

        et2.requestFocus();
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.main, menu);
        return true;
    }
}


Step 4 : Open AndroidManifest.xml and add following code :


 <?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.gudivada.hemanthsomaraju"
    android:versionCode="1"
    android:versionName="1.0" >

    <uses-sdk
        android:minSdkVersion="8"
        android:targetSdkVersion="19" />

    <application
        android:allowBackup="true"
        android:icon="@drawable/ic_launcher"
        android:label="@string/app_name"
        android:theme="@style/AppTheme" >
        <activity
            android:name="com.gudivada.hemanthsomaraju.MainActivity"
            android:label="@string/app_name" >
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>

</manifest>
Step 5 : Our output will be like this :
